Báo động TAKEX - NHẬT

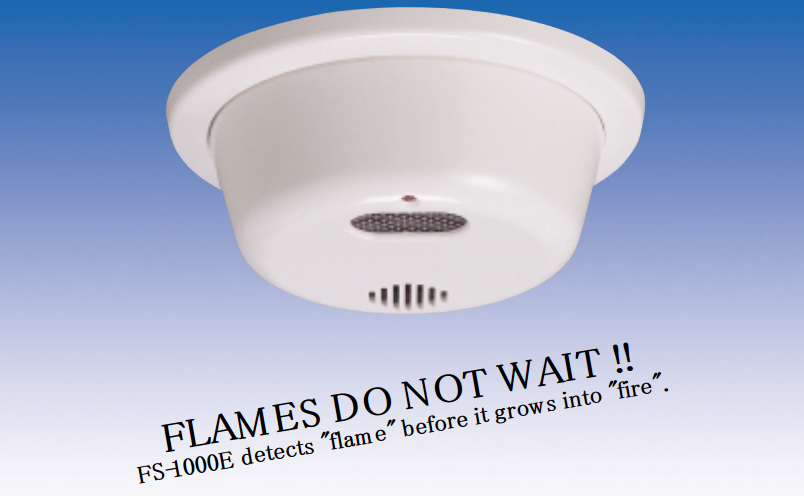

Cảm biến lửa FS-1000E

Giá: 2,610,000 VNĐ
Tình trạng: Còn hàng

Cảm biến lửa FS-1000E.

Lắp đặt: trong nhà, cao 10m, đường kính bảo vệ 10m, NPN output, PIN3V/9-30VDC, tích hợp chuông/loa cảnh báo bằng giọng nói.
Xuất xứ: Takex/Nhật
Document: Download

Thông tin chi tiết

Power supply
The FS-1000E can be powerd from either type-3 alkaline battery ×2 pcs, or an external power source 9～30VDC depending on the application.
Optional power source can be from a long life lithium battery.

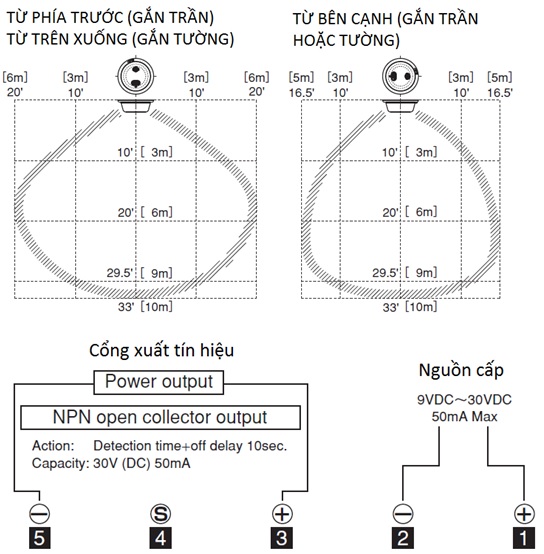

External output to a security system
Equipped with a form A (N/O) open collector output, FS-1000E can be connected to a security control panel. Alternatively the output signal can be used to initiate a warning device e. g. bell, siren etc., when used with an external DC power supply.
Operation set-up by detection timer
The alarm will be activated only when the sensor detects a flame (ultraviolet rays) in accordance with the detection timer. The 3
following detection times are selectable by a slide switch located on the sensor body.
H: 0.2sec. M: 1sec. L: 6sec.
Other functions
● The internal alarm sounder output is greater than 80dB at 3.3ft. (1m) in front of the sensor. The internal sounder can be disconnected by cutting a jumper wire if required when using an external DC power supply.
● Compact design enables FS-1000E to be installed at any location. Easy separation of the sensor unit from the base simplifies installation and maintenance.
● Low battery
When using a battery power source, low battery condition is annunciated by an internal buzzer and external LED.
● Power up
When power is turned on, an alarm sound is activated. If no alarm sound is activated, check the power source.
